KRAIBURG CowCross: Self-draining rubber flooring for drier crossing passages
Elevated crossing passages are often constructed with a level concrete surface in many dairy barns. They are generally cleaned manually and often only during milking, around twice a day. Liquids can accumulate there until the next cleaning. The result: persistent wetness and soiling, an increased risk of slipping and greater stress on the hooves.
With the new CowCross, KRAIBURG offers a solution for targeted drainage in these hygiene-sensitive areas. The self-draining rubber flooring has an integrated slope of 3 %. This directs liquids to the adjacent walking alleys quickly and effectively, where they can be collected by scrapers or manure removal robots during the regular cleaning interval. This keeps crossing areas drier and safer between cleaning cycles.
For existing barns and new construction

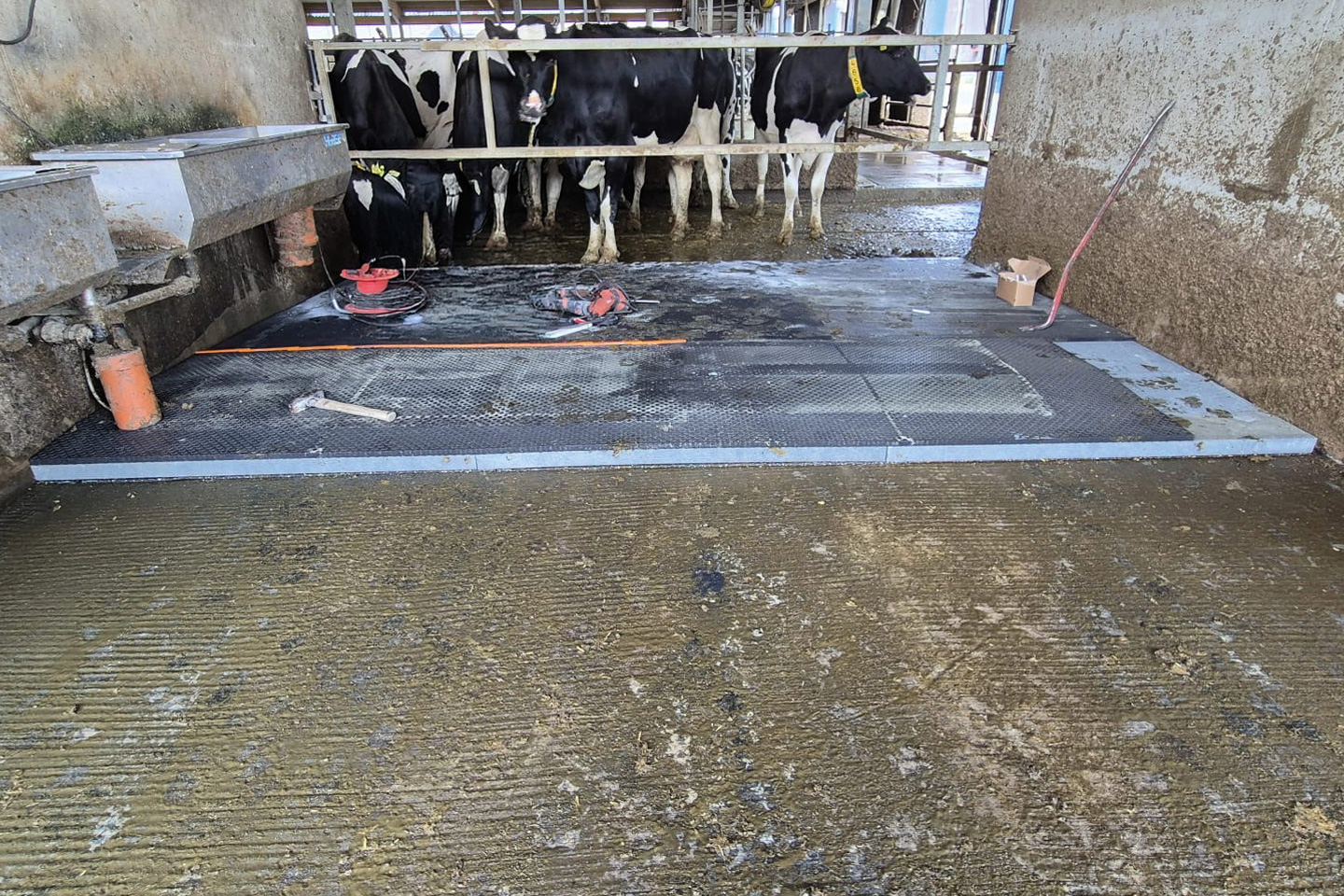

CowCross is designed both for retrofitting existing level crossing passages and for use in new barn construction. The required slope is already integrated into the mats and does not need to be created through complex concrete work. This saves labor during installation while providing a practical solution for different barn concepts.

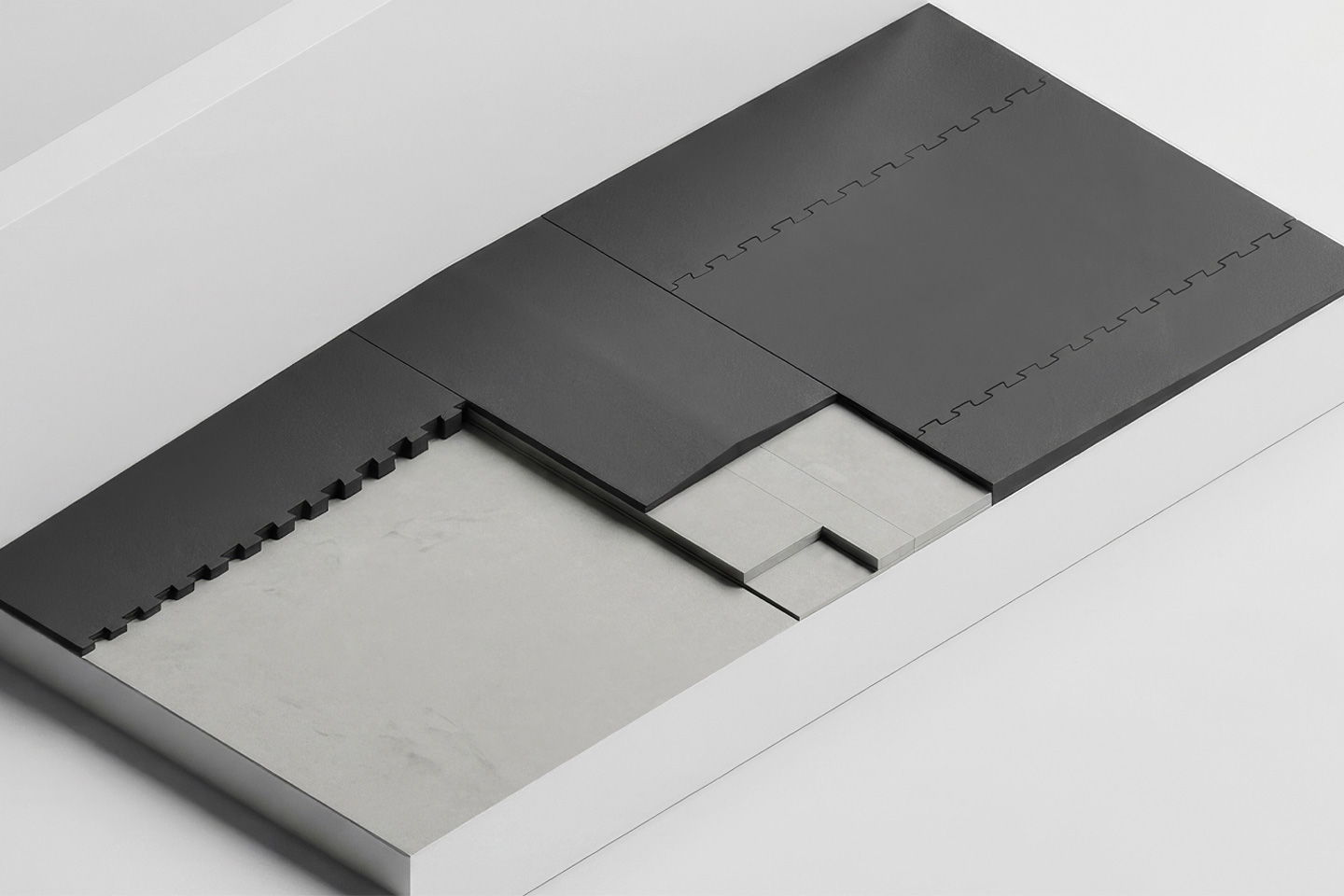

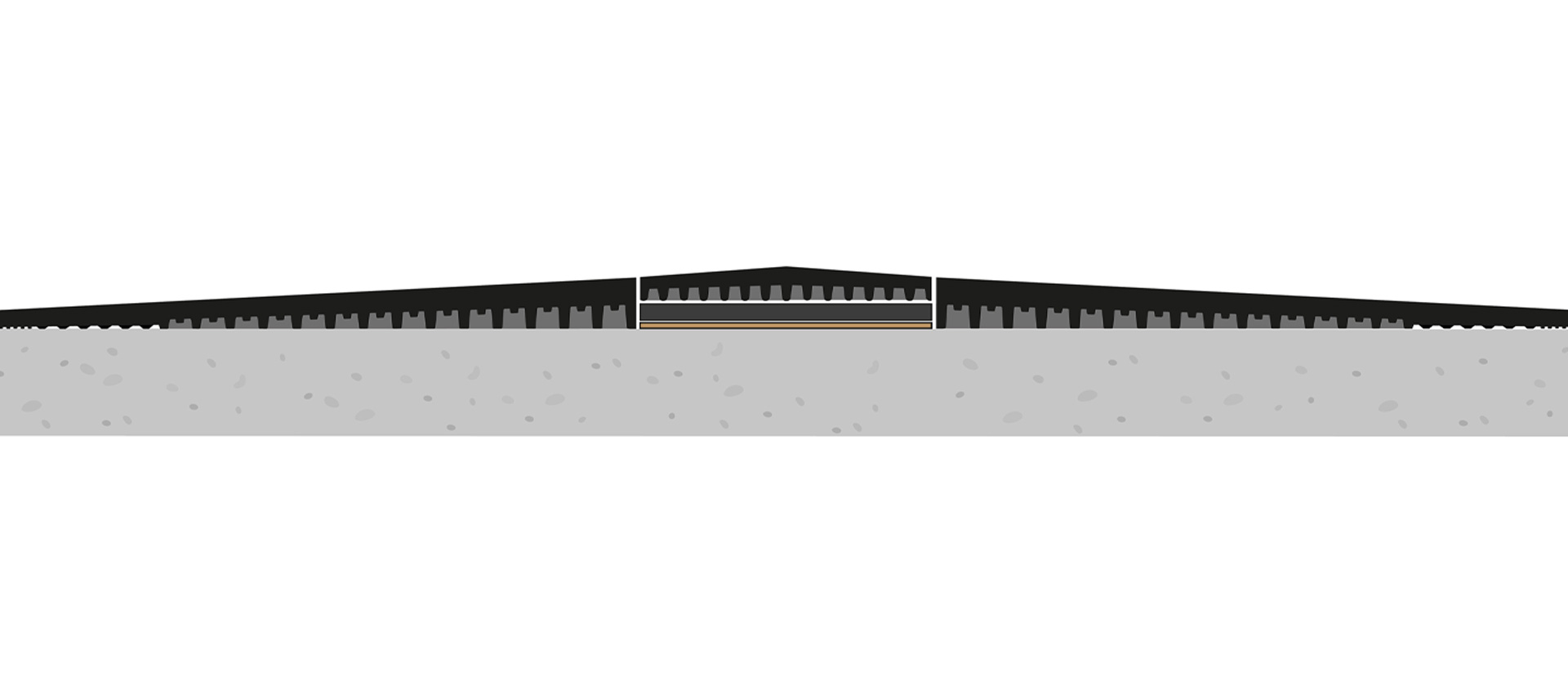

The flexible system consists of two wedge-shaped mats and one roof-shaped mat in the center, as well as a building protection mat and a recycled plastic board for height adjustment. It can be used to cover crossing passages up to 5.20 m wide. The new flooring is 15 mm high at the edge and rises to 92 mm in the center of the crossing passage. Its elastic, hoof-friendly walking surface provides comfortable walking and supports slip resistance.
Less standing liquid and reduced contact with wet, soiled areas help relieve stress on the hooves and support hoof health. The combination of defined drainage and elastic flooring also improves animal safety when crossing these areas.
Faster drainage of liquids as a contribution to emission reduction
The rapid drainage of urine and water from drinking troughs supports faster separation of feces and urine on crossing areas. This can reduce ammonia formation. CowCross therefore combines animal comfort, barn hygiene and an environmentally relevant approach - particularly in areas that have previously often been cleaned only at longer intervals.
Further information:
Press information Dry walking areas, fewer emissions
Press information Soft walkng, safe footing
Download all images of this press information in print quality.
Download image packageDownload the complete press information as a PDF.
Download as PDFThe images may only be used free of charge in an editorial context relating to KRAIBURG Elastik, provided that the image credit ‘KRAIBURG Elastik’ is included. Any other use requires prior written consent. Please send a copy or a link to the publication.
About KRAIBURG Elastik
Gummiwerk KRAIBURG Elastik GmbH & Co. KG has been developing and manufacturing elastic rubber flooring for cattle and horse housing since 1968. In Tittmoning, Germany, around 200 employees combine experience in rubber processing with practical product development. The aim is to support animal welfare, safety, performance and efficient barn management with innovative solutions. The DIN-compliant products are tested in the company’s own laboratory, in test barns and by independent institutes. KRAIBURG Elastik holds the DLG quality seal ‘CONTINUOUS MONITORING’. The barn flooring specialist is committed to resource-saving production and repurposes tire rubber as a raw material for robust flooring. The company is part of the KRAIBURG Group.
